Quickstart

This is the quickstart guide of PyHopper

The Search class

The central component of PyHopper is the pyhopper.Search() class whose constructor defines the search space and run method performs the hyperparameter search. For example

import pyhopper

def dummy_objective(param :dict) -> float:
    print(param)
    return 0

search = pyhopper.Search(
    {
        "my_const": "cifar10",
        "my_int": pyhopper.int(100,500),
        "my_float": pyhopper.float(0,0.4),
        "my_choice": pyhopper.choice(["adam","rmsprop","sgd"]),
    }
)
search.run(dummy_objective,"maximize",max_steps=5,quiet=True)

outputs

> {'my_const': 'cifar10', 'my_int': 364, 'my_float': 0.3404501564, 'my_choice': 'sgd'}
> {'my_const': 'cifar10', 'my_int': 408, 'my_float': 0.1056544366, 'my_choice': 'adam'}
> {'my_const': 'cifar10', 'my_int': 206, 'my_float': 0.2091606387, 'my_choice': 'adam'}
> {'my_const': 'cifar10', 'my_int': 438, 'my_float': 0.1960442887, 'my_choice': 'sgd'}
> {'my_const': 'cifar10', 'my_int': 156, 'my_float': 0.2719664365, 'my_choice': 'sgd'}

Note

Setting quiet=False (which is default) prints a progress bar during the search and a short summary at the end of the search.

Hyperparameter types

As shown above, PyHopper has three built-in template types: int(), float(), and choice() (see API docs).

pyhopper.int() requires a lower and an upper bound (inclusive bounds) defining the range of the search space. Optionally, we can provide an initial guess for the parameter via the init argument. Moreover, as Nvidia’s TensorCores require certain parameters to be a multiple of 8 or power of 2, we can constraint the parameter to such values. For instance,

search = pyhopper.Search(
    {
        "layers": pyhopper.int(1, 8),
        "epochs": pyhopper.int(10, 50, init=30),
        "num_units": pyhopper.int(100, 500, multiple_of=100),
        "batch_size": pyhopper.int(32, 512, power_of=2),
    }
)

generates the samples

> {'layers': 6, 'epochs': 30, 'num_units': 400, 'batch_size': 128}
> {'layers': 8, 'epochs': 31, 'num_units': 400, 'batch_size': 32}
> {'layers': 4, 'epochs': 21, 'num_units': 500, 'batch_size': 32}
> {'layers': 3, 'epochs': 21, 'num_units': 400, 'batch_size': 64}
> {'layers': 5, 'epochs': 24, 'num_units': 400, 'batch_size': 32}

pyhopper.float(), similar to before, accepts inclusive lower and upper bounds and an optional initial guess. Hyperparameters often span over multiple orders of magnitude. For instance, the optimal learning rate of a neural network could be in the range from 0.00001 to 0.1. Drawing uniform samples from this range favors larger values, as the center of the interval is approximately 0.05, which means that half of all generated samples will be larger than 0.05 on average.

For such parameters, logarithmic sampling, enabled via the log argument, is a better option

search = pyhopper.Search(
    {
        "dropout": pyhopper.float(0, 0.5),
        "lr_lin": pyhopper.float(1e-5, 1e-1),           # linear
        "lr_log": pyhopper.float(1e-5, 1e-1, log=True), # logarithmic
    }
)

> {"dropout": 0.11816788326, "lr_lin": 0.05527447103, "lr_log": 0.00123320712}
> {"dropout": 0.03368100192, "lr_lin": 0.04697054821, "lr_log": 0.00001454088}
> {"dropout": 0.19095931974, "lr_lin": 0.00770115557, "lr_log": 0.02469411646}
> {"dropout": 0.13041185714, "lr_lin": 0.05653078541, "lr_log": 0.00185817307}
> {"dropout": 0.29153194475, "lr_lin": 0.08468031050, "lr_log": 0.04448428726}

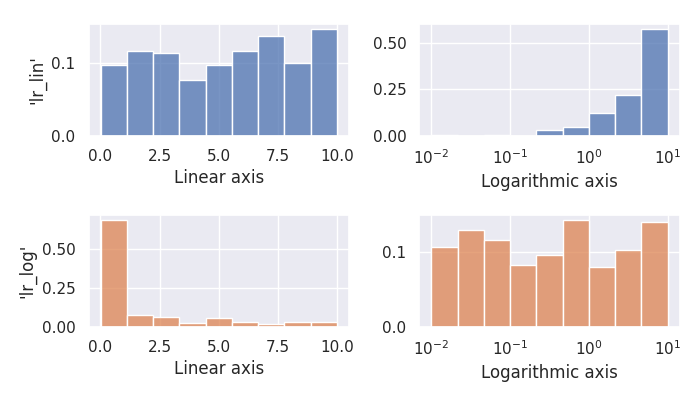

Looking at the histogram of both parameters’ samples illustrates this effect better:

_images/float_dist.png

Keeping all digits of a float parameter looks ugly and increases the chance of overfitting. To limit the precision, we can use the precision argument. precision defines the number of digits after the comma in the default linear sampling mode, whereas the number of significant digits in the logarithmic mode.

search = pyhopper.Search(
    {
        "dropout": pyhopper.float(0, 0.5, precision=2),          # 2 digits after the comma
        "lr": pyhopper.float(1e-5, 1e-1, log=True, precision=1), # 1 significant digit
    }
)

> {'dropout': 0.04, 'lr': 0.0001}
> {'dropout': 0.11, 'lr': 0.02}
> {'dropout': 0.37, 'lr': 0.008}
> {'dropout': 0.13, 'lr': 0.0001}
> {'dropout': 0.20, 'lr': 0.0009}

pyhopper.choice() requires a list of possible values for this hyperparameter. Similar to before, we can provide an initial guess. In case the values in the list are provided in a structured order, setting the is_ordinal argument indicates pyhopper to preserve this order when sampling. For instance in

search = pyhopper.Search(
    {
        "opt": pyhopper.choice(["adam", "rmsprop", "sgd"]),
        "dropout": pyhopper.choice([0, 0.1, 0.2, 0.3], is_ordinal=True),
    }
)

the parameter "opt" has no ordering but "dropout" has, making pyhopper sample items adjacent to the current best value.

{'opt': 'adam', 'dropout': 0.3}
{'opt': 'adam', 'dropout': 0.2}
{'opt': 'sgd', 'dropout': 0.3}

Running PyHopper

Once we have defined the search space, we can schedule the search using the pyhopper.Search.run() method. The method requires three argument: The objective function, the direction of the search (minimize or maximize), and the runtime of the search. For specifying the runtime, we can provide a string that is parsed by pyhopper.parse_timeout() or simply an integer/float with the runtime in seconds.

timeout = 30               # 30 seconds
timeout = "2h 10min"       # 2 hours and 10 minutes
timeout = "3d 7h 30m 10s"  # 3 days, 7 hours, 30 minute and 10 seconds

To utilize multi CPU/GPU hardware, we can run multiple evaluations of parameter candidates in parallel with the n_jobs argument. For instance,

import pyhopper
import time

def of(param):
    time.sleep(1)      # some slow code
    return param["x"]

search = pyhopper.Search({"x": pyhopper.float(0, 1)})

start = time.time()
search.run(of, max_steps=20, quiet=True)
print(f"n_jobs=1 took {time.time()-start:0.2f} seconds")

start = time.time()
search.run(of, max_steps=20, quiet=True, n_jobs=4)
print(f"n_jobs=4 took {time.time()-start:0.2f} seconds")

> n_jobs=1 took 20.19 seconds
> n_jobs=4 took 5.08 seconds

Setting the argument to n_jobs="per-gpu" will spawn exactly one worker process for each GPU attached to the machine. Moreover, PyHopper will take care of setting the CUDA_VISIBLE_DEVICES environment variable for each of the worker processes to its private GPU, so each worker sees only a single GPU. Consequently, we can write standard PyTorch and TensorFlow code in the objective function without having to worry about two processes accessing the same device. TL;DR: useful values for n_jobs are:

n_jobs = 1            # No parallel workers
n_jobs = 4            # 4 parallel workers
n_jobs = "per-gpu"    # A worker for each GPU device
n_jobs = "2x per-gpu" # 2 workers for each GPU device
n_jobs = -1           # A worker for each CPU core

Dealing with a noisy objective

Training a neural network is an inherently stochastic process. Randomness from the weight initialization has a strong influence on the final accuracy. In the context of a hyperparameter search, it may happen that a non-optimal parameter candidate achieves a high accuracy by simply having luck with the initial weights used for its evaluation. To tell spurious and genuine high accuracy apart, we have to evaluate each parameter candidate several times and use the average accuracy as our objective metric. For exactly this reason, PyHopper provides the pyhopper.wrap_n_times() function that wraps an arbitrary function into its mean over n evaluations.

def noisy_objective(param):
    print(param["name"])
    return 0

search = pyhopper.Search({"name": pyhopper.choice(["adam","eve"])})

search.run(
    pyhopper.wrap_n_times(noisy_objective,3),
    "minimize",
    "3s"
)

> adam
> adam
> adam
> eve
> eve
> eve

Note

To reduce the computational cost of evaluating each candidate multiple times, PyHopper allows cancelling candidates if their first evaluation shows that they have only a small chance of becoming the best hyperparameters. See Discontinuing unpromising candidates during evaluation for more details.

A putting things together

Putting everything together, a typical hyperparameter tuning code may look something like this

import pyhopper

def my_objective(param: dict) -> float:
    # Add code here
    return val_acc

search = pyhopper.Search(
    {
        "epochs": 20,
        "num_layers": pyhopper.int(1, 8, init=4),
        "batch_size": pyhopper.int(32, 512, multiple_of=32),
        "dropout": pyhopper.float(0, 0.5, precision=1),
        "lr": pyhopper.float(1e-5, 1e-2, log=True, precision=1),
        "opt": pyhopper.choice(["adam", "rmsprop", "sgd"], init="adam"),
        "weight_decay": pyhopper.choice([0, 1e-5, 1e-4, 1e-3], is_ordinal=True),
    }
)
search.run(pyhopper.wrap_n_times(my_objective,3), "max", "4h", n_jobs="per-gpu")
