Travelling Salesman Problem with PyHopper

Pyhopper’s flexibility allows us to implement heuristics for combinatorial optimization problems such as for the Travelling Salesman Problem (TSP) with few lines of code. For instance, the 2-opt heuristic is a well known search algorithm for the TSP:

import numpy as np
import pyhopper
import matplotlib.pyplot as plt

N = 50
cities = np.random.default_rng(123456).uniform(-10, 10, size=(N, 2))

def tsp_objective(solution):
    order = solution["order"]
    p = cities[order]
    cost = np.sum(np.linalg.norm(p[:-1] - p[1:], axis=1))
    cost += np.linalg.norm(p[0] - p[-1])  # make a roundtrip
    return cost

def two_opt(order):
    order = np.copy(order)  # Don't overwrite current best order
    i, j = np.random.default_rng().integers(0, N, 2)
    # Swap city i with city j
    temp = order[i]
    order[i] = order[j]
    order[j] = temp
    return order

search = pyhopper.Search(
    {
        "order": pyhopper.custom(
            seeding_fn=lambda: np.random.default_rng().permutation(N),
            mutation_fn=two_opt,
        )
    }
)
solution = search.run(
    tsp_objective,
    "min",
    timeout="30s",
)

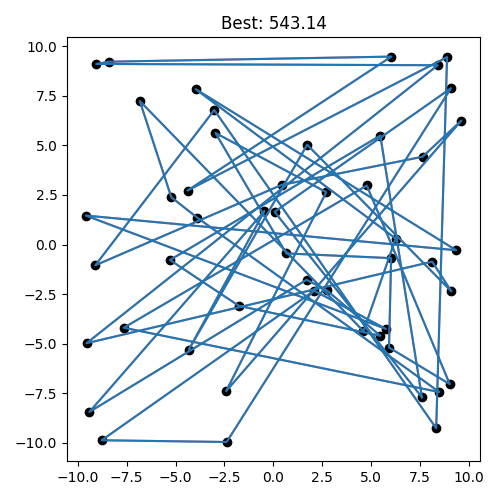

# Let's plot the cities' location
plt.scatter(cities[:, 0], cities[:, 1], marker="o", color="black")

order = solution["order"]
# Arrange cities in solution's ordering and make it a roundtrip
x = [cities[order[i], 0] for i in range(N)] + [cities[order[0], 0]]
y = [cities[order[i], 1] for i in range(N)] + [cities[order[0], 1]]
plt.plot(x, y)
plt.show()
